3D (.STL) data / for 1st lot (SN0001 – SN0019)

Download set of 3D data from here.

3D printed case of SnapBeat, the simple Lo-fi sampler

These 3D data is assumed to be printed with 0.8mm nozzle for reducing printing time and increasing strength. About parameters for slicing the 3D data, please adjust and find best settings which are suitable for your own 3D printer.

Tips and notes for each 3D data

  • bottom_case_20230710 (no slit).stl
3D model of bottom case, SnapBeat, the simple Lo-fi sampler
Cutting support around screw holes of bottom case, SnapBeat, the simple Lo-fi sampler
  • Printing with this direction is recommended.
  • After print, please cut and remove material around four screw holes.

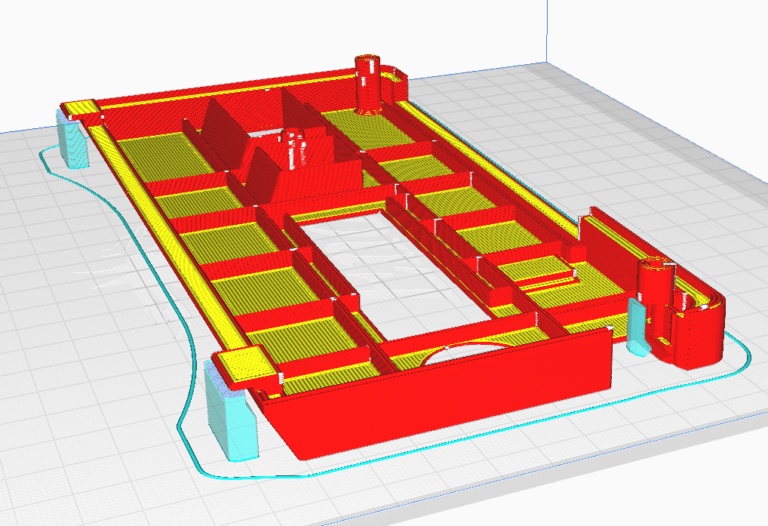

  • top_case_20230703.stl
  • Printing with this direction is recommended.
  • with support
  • top_case_front_20230704.stl
3D model printing direction of top_case_front, SnapBeat, the simple Lo-fi sampler
  • Printing with this direction is recommended.
  • back panel_20230703.stl
3D model printing direction of back panel, SnapBeat, the simple Lo-fi sampler
  • Printing with this direction is recommended.
  • Ironing the top surface is preferable for making it smooth.
  • LCD_holder_20230710.stl

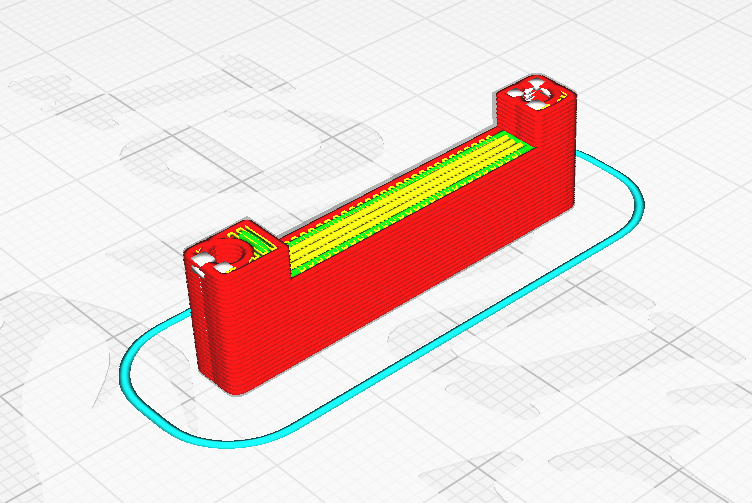

3D model printing direction of LCD holder, SnapBeat, the simple Lo-fi sampler
  • Printing with this direction is recommended.
  • Ironing the top surface is preferable for making it smooth.

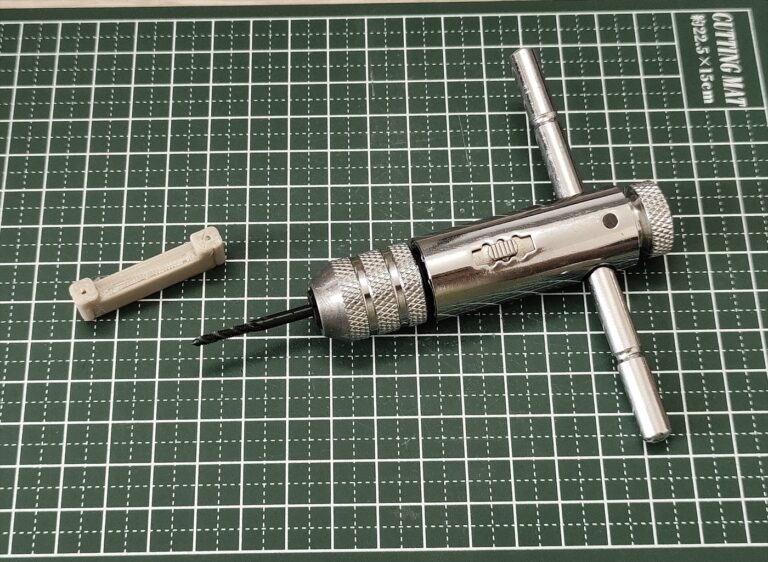

  • Tapping for screws (diameter of 2.5mm)
  • USB rid_20230710.stl
3D data printing direction, USB Lid, SnapBeat, the simple Lo-fi sampler
  • Printing with this direction is recommended.
